Racingline MQB Billet Underbody Tunnel Braces

$250.00
Options

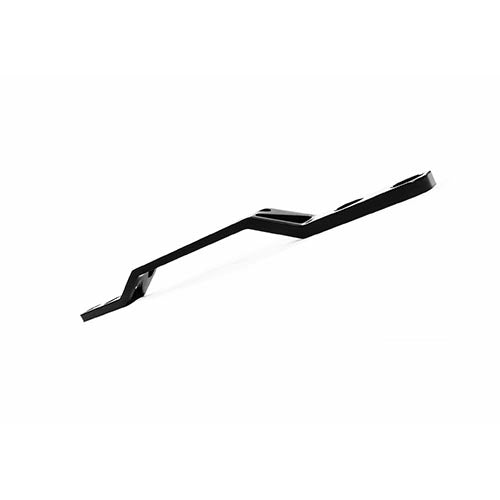

Racingline Billet Underbody Tunnel Braces

Want to sharpen up your MQB handling responses?

MQB Billet Underbody Tunnel Braces mount under the body to help fight body flex. This improves rigidity to help refine the handling, whilst also providing valuable extra clearance for larger diameter exhaust system.

What do they do?

MQB cars rely on thin stamped-steel OE tunnel braces underneath in an attempt to reinforce the body’s weaker points and limit chassis flex under demanding loads. Our new Billet Underbody Braces replace these weak braces with intricately machined aluminium replacements, greatly improving stiffness, giving much better exhaust clearance and even look great!

  • CNC Machined from a solid billet of 6061-T6 Aluminium, each brace has been engineered to remove unnecessary material whilst still increasing rigidity.

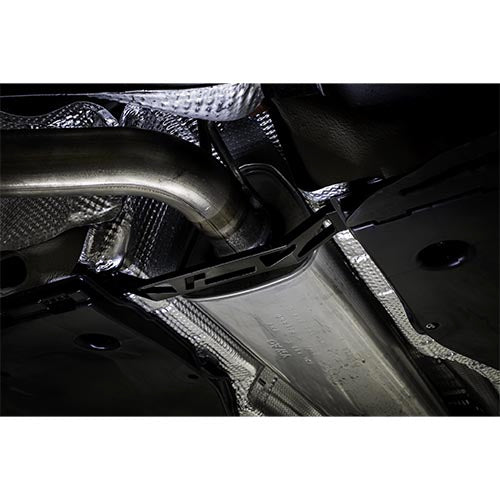

  • With any 3″ diameter exhaust system, the OE brace gives insufficient clearance. So rather than removing the tunnel brace, our new Rear Tunnel Brace at last gives you the option to replace it, giving you the clearance you need plus maintaining crucial body stiffness.
  • Despite adding stiffness, this improved dynamic performance comes without sacrificing any ride quality or introducing any additional noise, vibration, or harshness into the cabin.
  • The brace designs mean that installation is simple, using existing body mounting points with no drilling or trim removal required, ensuring fitment is completely reversible.
  • We offer two braces – a Centre and a Rear Tunnel Brace. Owners of FWD cars can fit both, AWD cars can only fit the Rear Tunnel Brace.

Looking to fit a larger bore Exhaust System?

For large diameter aftermarket exhausts, there simply isn’t clearance space above the factory tunnel brace. Many owners have no choice but to remove the brace. But the brace is there for a reason. With the extra clearance our Rear Tunnel Brace gives, you can now maintain strength and fit your bigger exhaust.

CONFIRMED APPLICATIONS

Drive a Front-Wheel Drive MQB car?  Good news -  you can fit both of the Underbody Tunnel Braces on your car (or either one).

If your car is All-Wheel Drive MQB, then only the Rear Tunnel Brace will fit on your car.

VWR810005 – Rear Tunnel Brace
VWR810004 – Centre Tunnel Brace (Front-wheel drive only)

> VW Golf 8 2020+
> VW Golf 7 & 7.5 2013-2020
>VW Passat B8 2015+
>VW Arteon 2017+
> VW T-Roc 2017+
> VW Tiguan II 2016+
> VW Jetta / GLI 7 2018+

> Audi S3 8Y 2020+
>Audi A3 8Y 2020+
> Audi S3 8V 2013-2020
> Audi A3 8V 2013-2020
> Audi RS3 2.5 TSI 8V evo 2017-2020
>Audi RS3 2.5 TSI 8V 2015-2017
> Audi TT 3 8S 2014+
> Audi TTRS 3 2.5 TFSI 8S 2017+
>Audi SQ2 2018+
>Audi RSQ3 F3 2019+
>Audi Q3 2019+
>Audi Q2 2017+

> Cupra Leon IV FW 2020+
> SEAT Leon III 5F 2015-2020
> Cupra Ateca 2018+
> Cupra Formentor 2020+
> SEAT Tarraco 2.0 TSI 2018+

>Skoda Octavia IV NX 2020+
>Skoda Octavia III 5E 2014-2020
>Skoda Superb III 3V 2015+

Please note: Rear Tunnel Brace does not fit Tiguan R when fitted with Akrapovic Exhaust
